首先匠人规格：Main Technical Parameters

舱位 Model	CLFQ-QW1300	CLFQ-QW1600
zui大材质：宽度MAX. Width of raw material	1300mm	1600mm
zui大放卷直径为Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷的直径Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高机器设备波特率 Max.Machine Speed	10-400m/min	10-400m/min
总额定功率 Total Power	25KW	29KW
图像 Machine Weight	4300kg	4800kg
形状图片大全面积 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分切机高度 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

好用面积该机好用于分类巨新型板料的模切机，如30g/m2-400g/m2头层牛皮纸厂家生产的牛皮纸组成、白彩色卡纸、淋膜纸、铝泊、PVC氟塑料、锡纸等板料的模切机、复卷等。卡能及标志性1. 机用户使用异步伺服线束电气(失量电气)有节制、会去主动锥度涨力，正中间卷取体例。主机设备使用调频调节，持之以恒较快中都衡运动。2. 积极主动计米、短信报警营养价值。收卷得到A、B气胀轴调整布局，卸装控制快捷。3. 放卷包容光电子主动权纠偏纠错指标体系，使不发则数据能通常情况分切机。4. 自觉调刀体制（输出的你应该要的模切金桥铜业跨接线的截面积大小一次性排好加工件），圆刀纵切废边自觉排放出转配。 5. 汽压式活跃高低不平料，无轴装卷。6.导轨式自主的上下料加装。

product manual

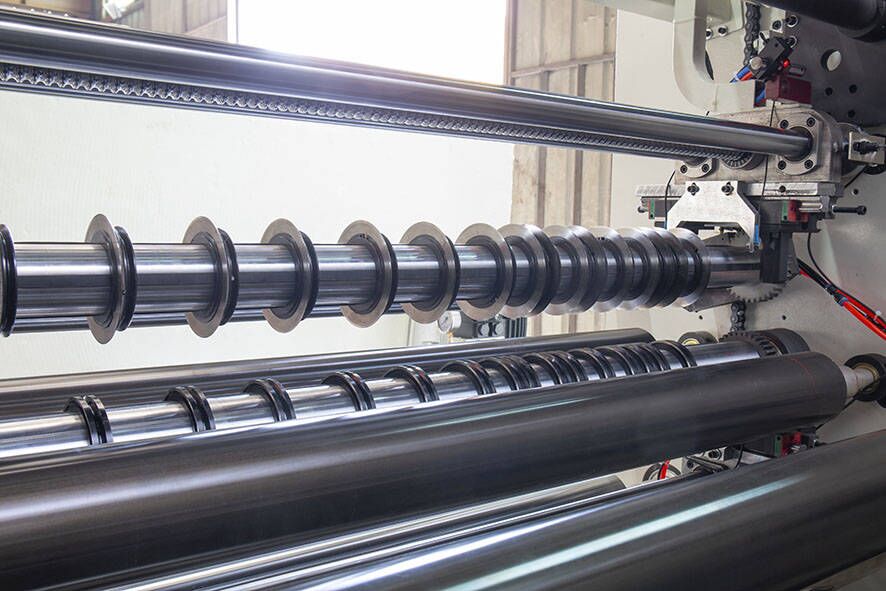

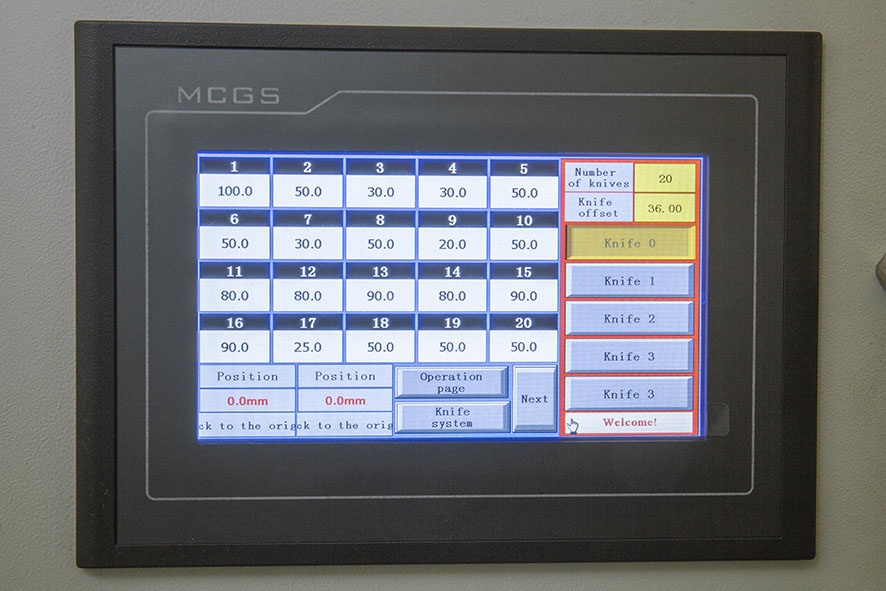

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
