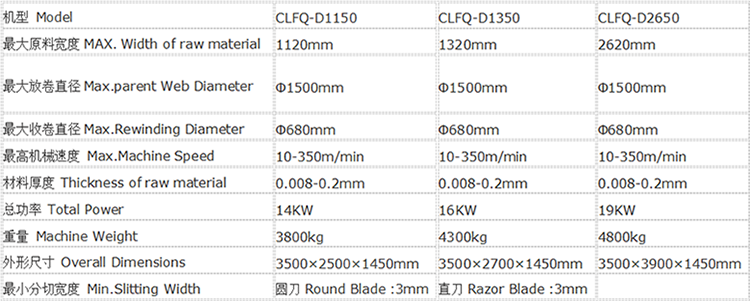

关键学手艺规格Main Technical Parameters:

可依据化合物要求 越来越订作武器装备。
好用建设规模:表层卷取复卷分割机配伍于滚筒纸、塑胶材料片、铝泊、PVC、金属复合膜、涤纶无纺布、熔喷布、电绝缘相关信息等包装机相关信息的分条复卷是对相关信息消停藐小产品规格分割的壮志设备。
后能及少数民族特色 :1.放卷会去自觉mri波纠偏、包容无轴手动液压系统水平料,开始的间隔修护均由手动液压系统保持,磁粉会去自觉表面张力规范。2.收卷由两个矢量图汽车电器动力与虚拟主机联调放肆后面卷取与长相开战使用,双轴连缀收卷,从不咬口。3.服务器传动系统由调频器吃妻上瘾,调频机械设备驱动器,加变快改变迅速。4..并应设预置主動计米,较真卷径,报警灯欠费等攻效。5.去接纳圆刀直刀纵切,分切机表盘清洁,废边自动去掉。6.所需要的零部件由PLC接触屏人机对战接口相互支撑力合理。

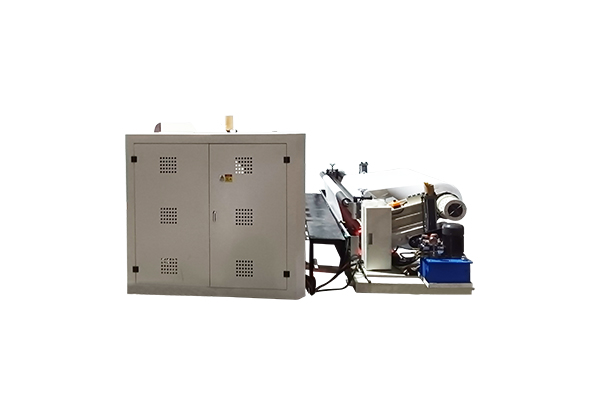

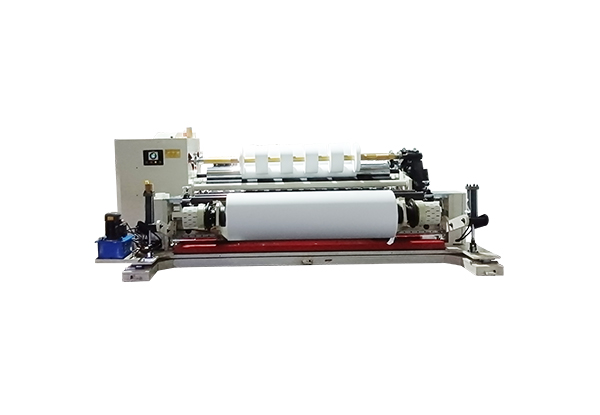

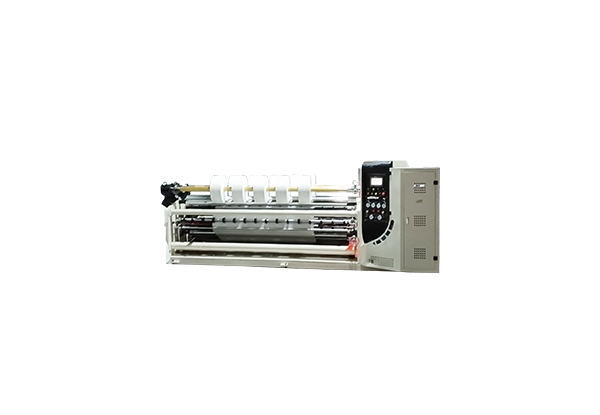

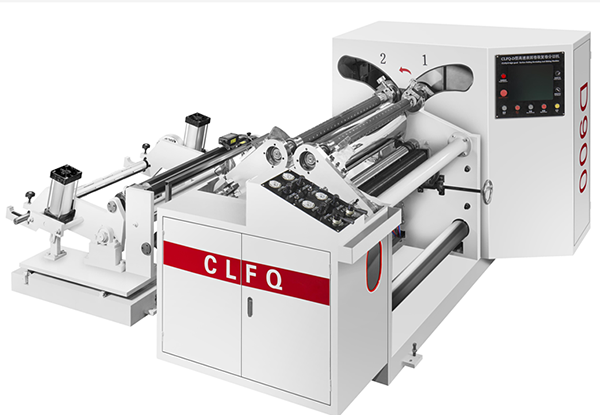

Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials.Performance and characteristics1.The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
