首要手艺参数：Main Technical Parameters

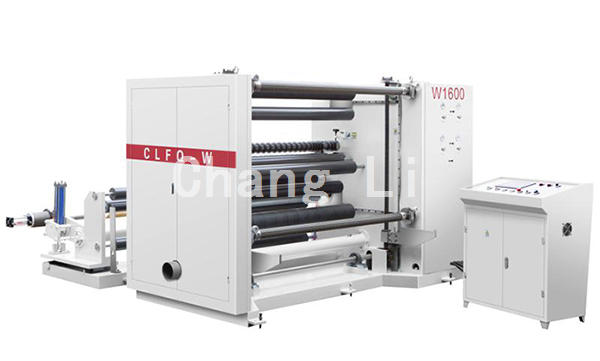

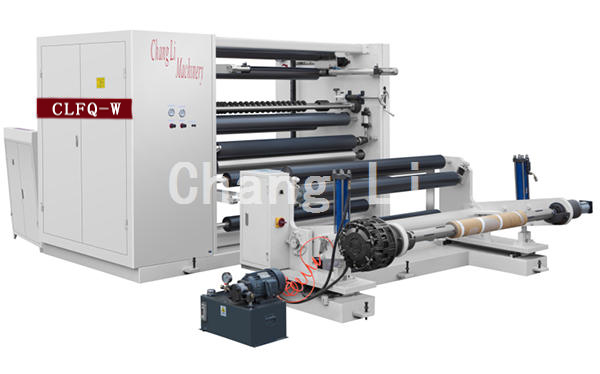

机型 Model	CLFQ-W1300	CLFQ-W1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ1200mm	Φ1200mm
收卷直径 Max.Rewinding Diameter	Φ1000mm	Φ1000mm
机器速率 Max.Machine Speed	10-300m/min	10-300m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	19KW	23KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2700×2900×1800mm	3000×2900×1800mm
分切宽度 Min.Slitting Width	50mm

可采用生成物提起 量身定制转备。

ꩲCan be made according to the product requires special equipment.

货物表明好用经营规模超声波焊接机合吃于当下中大型sbs防水的分割，如30g/m2-300g/m2牛皮革纸、白夹纸、淋膜纸、铝泊、PVC朔胶、锡纸等sbs防水的分割、复卷等。性能及特性1. 机用户敞开心扉异步步进驱动器机械(矢量素材机械)规范、及时锥度涨力，前面卷取体例。机箱敞开心扉定频变频调速，保证加大设一衡执行。2. 自主计米、提醒保健作用。收卷认识自己A、B气胀轴布局合理，卸装使用便利性。3. 放卷敞开心扉光电产品拒绝纠偏纠错保障体系，使不规律資料能般模切。4. 圆刀纵切废边主动地排出自动装配。5. 油压机式及时送料，配气胀轴。6.导轨式主动地下料机装配工艺。

product manual

Scope of application

ꦰThis machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

🦋1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

ౠ2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

♛3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

🌠4. The circular knife cuts the waste side automatic discharge device.

ꦇ5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device.
