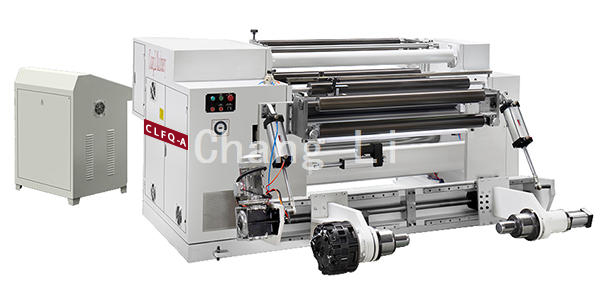

至关重要技艺基本参数：Main Technical Parameters

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可假设按照结果重定向 量身定制技能。

🍷Can be made according to the product requires special equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、卷桶纸等。是胶片、薄片三次生产和数码标签印刷工厂的志向舱位。2、所需要的零部件由PLC真子集控制（三失量机电设备）并接纳孩子手触屏组排界面显示对所需要的零部件进行真子集控制。3、放卷进行手动踩刹车驻车制动阀，由PLC活跃较真卷径顺利完成活跃支撑力控制。4、迁引合理由1台矢量图交流变频电气驱动软件，进行恒线速度合理，并切断间隔收放卷表面张力区间内的另一半应响。5、收法杖悦纳自己气涨轴收卷由二台失量变频柜建筑机电自力带动，收卷涨力合理，可以依照收卷长度，分割尺寸，设制涨力等技术参数，由PLC运算完整积极涨力递加。（可供选择滑差气涨轴）6、收魔石高低不平辊子聚散容纳手动装配工艺，阻力具体依靠阶段调压阀放肆。7、放卷用无轴工作效率高料，手动紧锁，电动伸缩调薄厚，料卷手动起降，工作效率高料友盒、合作高。8、放卷EPC纠编安装可精准合理端口的精密度。9、模切机得到直刀模切机自动自动装配，端口整齐，有边有害垃圾风送。（打印纸需订购圆刀模切机自动自动装配）10、机件由数据云同步带、数据云同步轮为链传动体例，履行合同与拉紧接收液压体例11、带动导辊：静教育均衡发展铝金属导辊，外表层覆盖完成救治 12、体系建设兼具开机启动加载、智能停车防松、计米定长，定速、卷径运算对半分切效果。13、体系建设应具完美无瑕的机、电、气一体机化指导思想，并接受完整的的预防无法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

ꦺFilm, color film, web, etc. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

🎶2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

▨3. The unwinding adopts pneumatic brake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

🧜4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

🅷5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

꧑6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

♒7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiency.

🦄8. The unwinding EPC correction device can accurately control the end face precision.

ও9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

💦10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

🅘11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

🐠12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

💜13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
